Analytical Model Settings
In Analytical Model Settings, user can adjust the graphical and display settings for better visualization.
These settings have been arranged and sorted in the corresponding tabs. The same settings can be found in Analytical Model after the Analysis is performed.

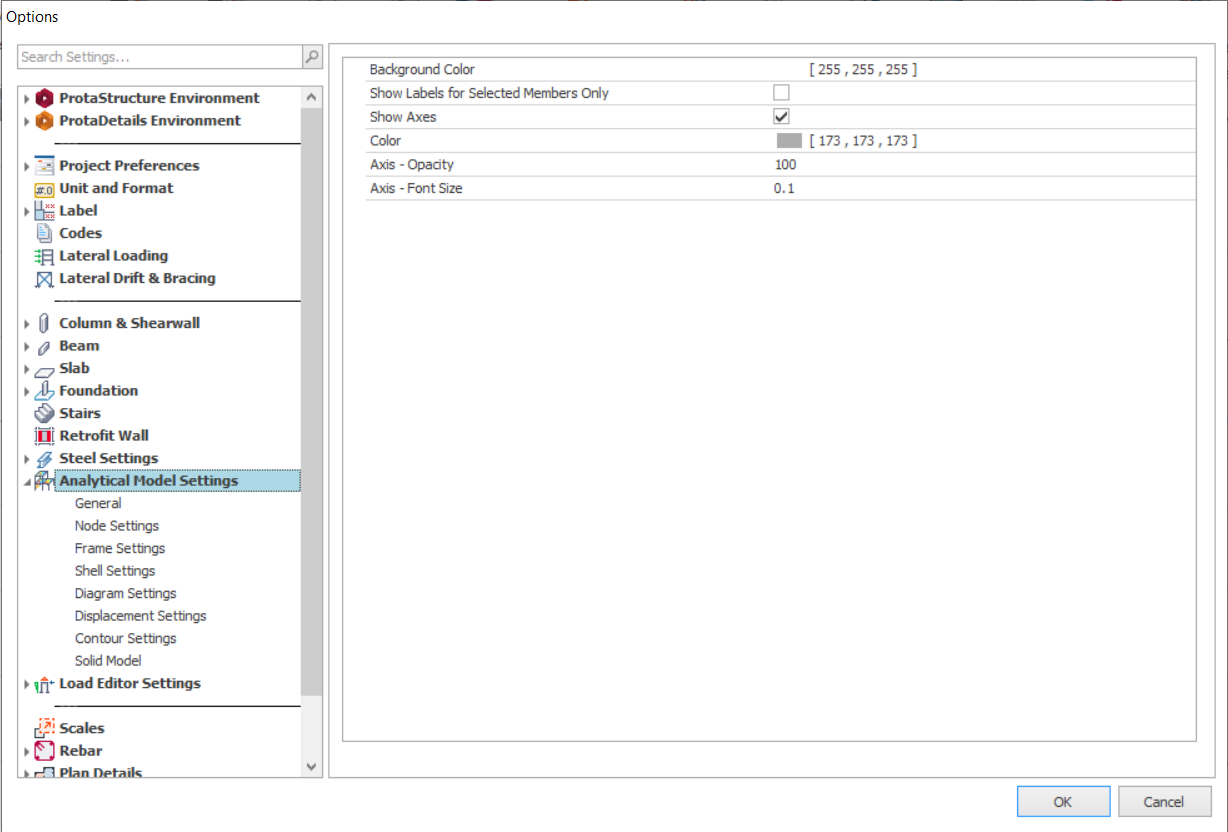

- General

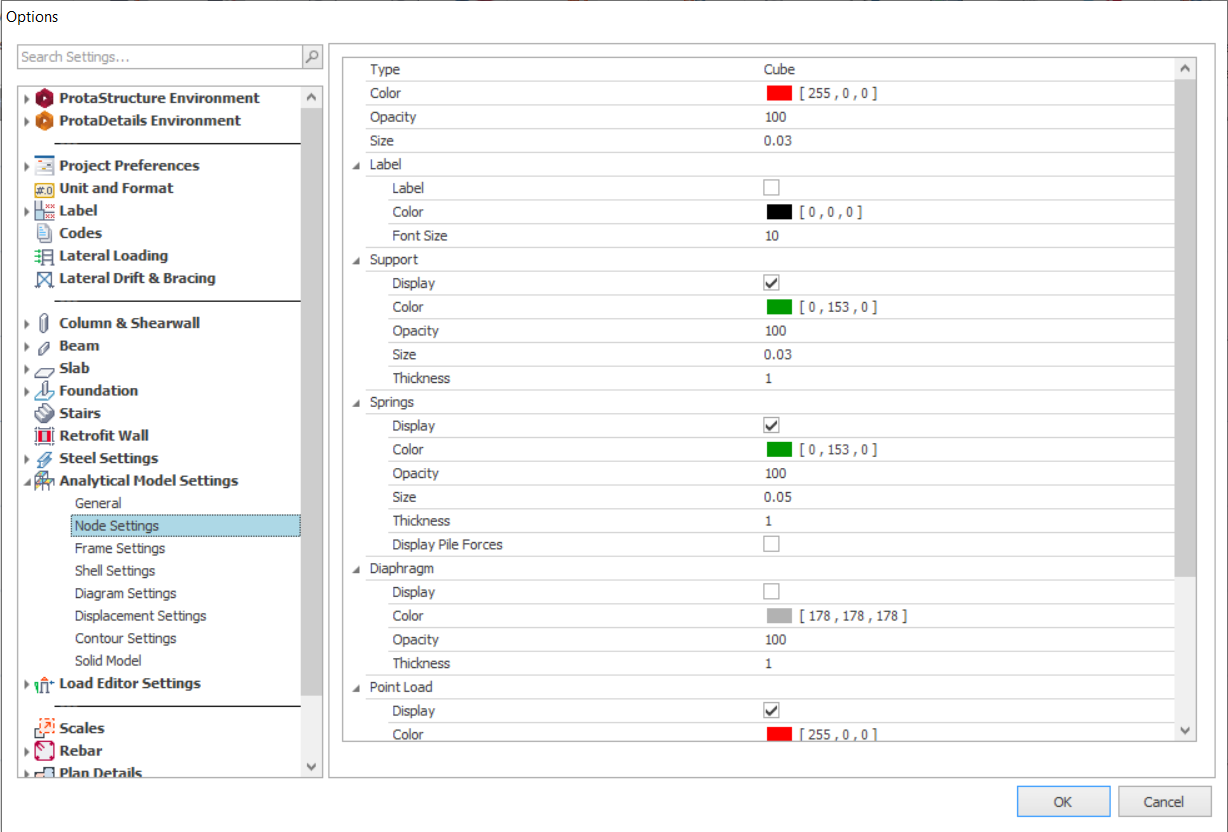

- Node Settings
- Frame Settings
- Shell Settings
- Diagram Settings
- Displacement Settings
- Contour Settings
- Solid Model
