Built Up Steel

General

Users can customize built up steel section if the particular steel sections are not available in the database. Sections created can be applied to column, beam, girt, beam, truss and so-on.

Built Up Steel

Steps to customize built up steel section as below:

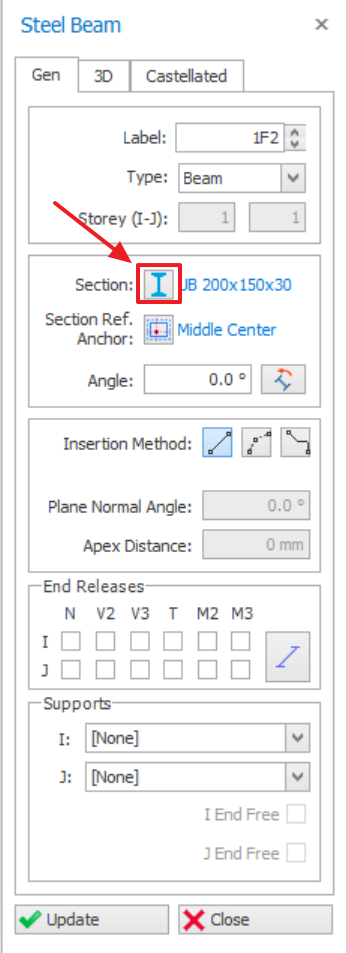

  1. Open steel member properties and select the "Steel Section Database".

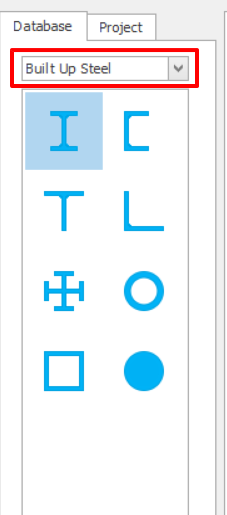

  2. In Database, select "Built Up Steel".
  3. Select sections.
  4. Edit the parameters in the table and rename the Section Name
  5. Click Ok then click Update in the steel member Properties.

Customizing Channel Section

User can customize steel channel section such as C section channel, Z section channel and Sigma section channel.
Cold Formed Steel are not designed in ProtaStructure.  ProtaStructure will only design for Hot Rolled Steel Section.
Steps to customize channel steel section as below:

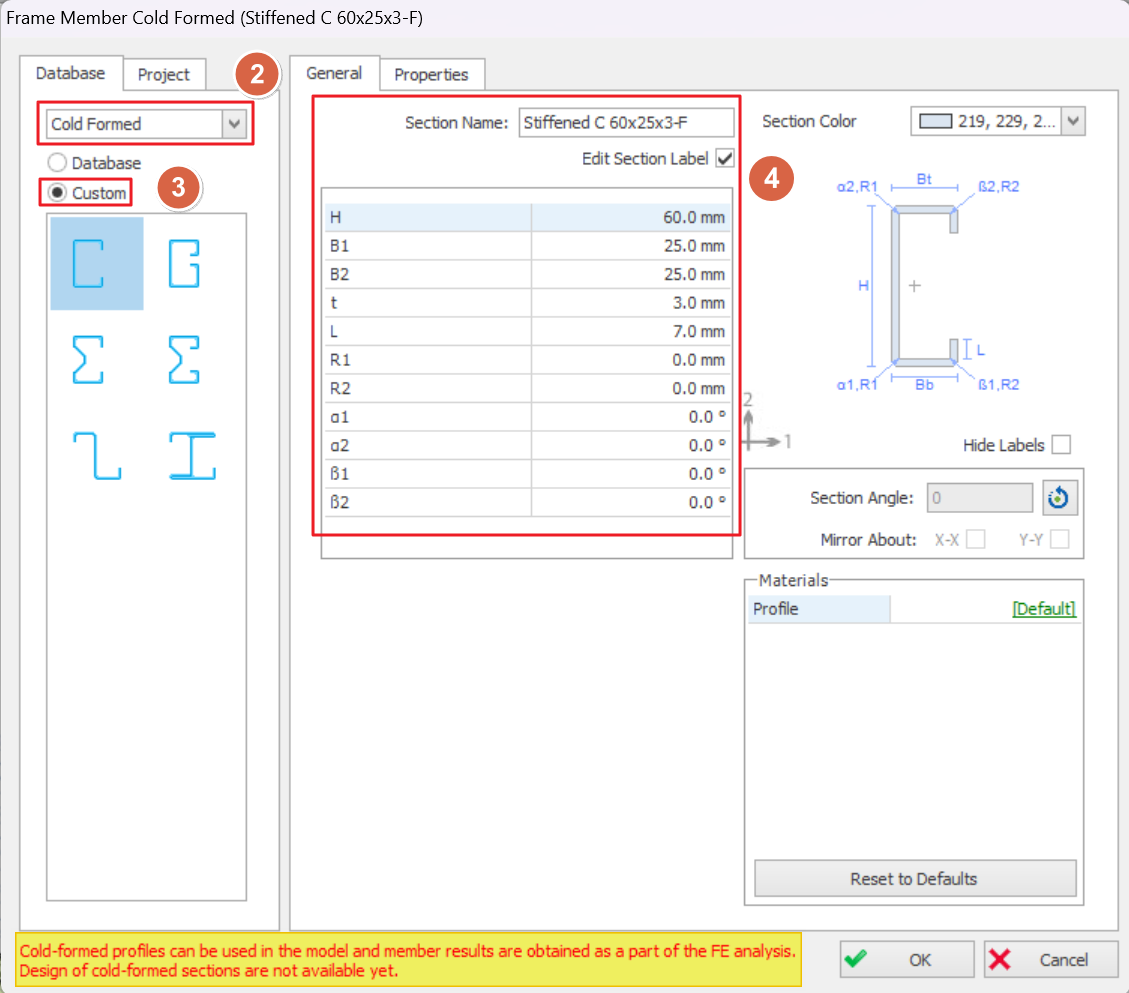

  1. Open steel member properties and select the "Steel Section Database".

  2. In Database, select "Cold Formed".
  3. Select "Custom" and select a section.
  4. Edit the parameters in the table and rename the Section Name

  5. Click Ok then click Update in the steel member Properties.
