How to Extract Column / Wall Load Into Excel Format

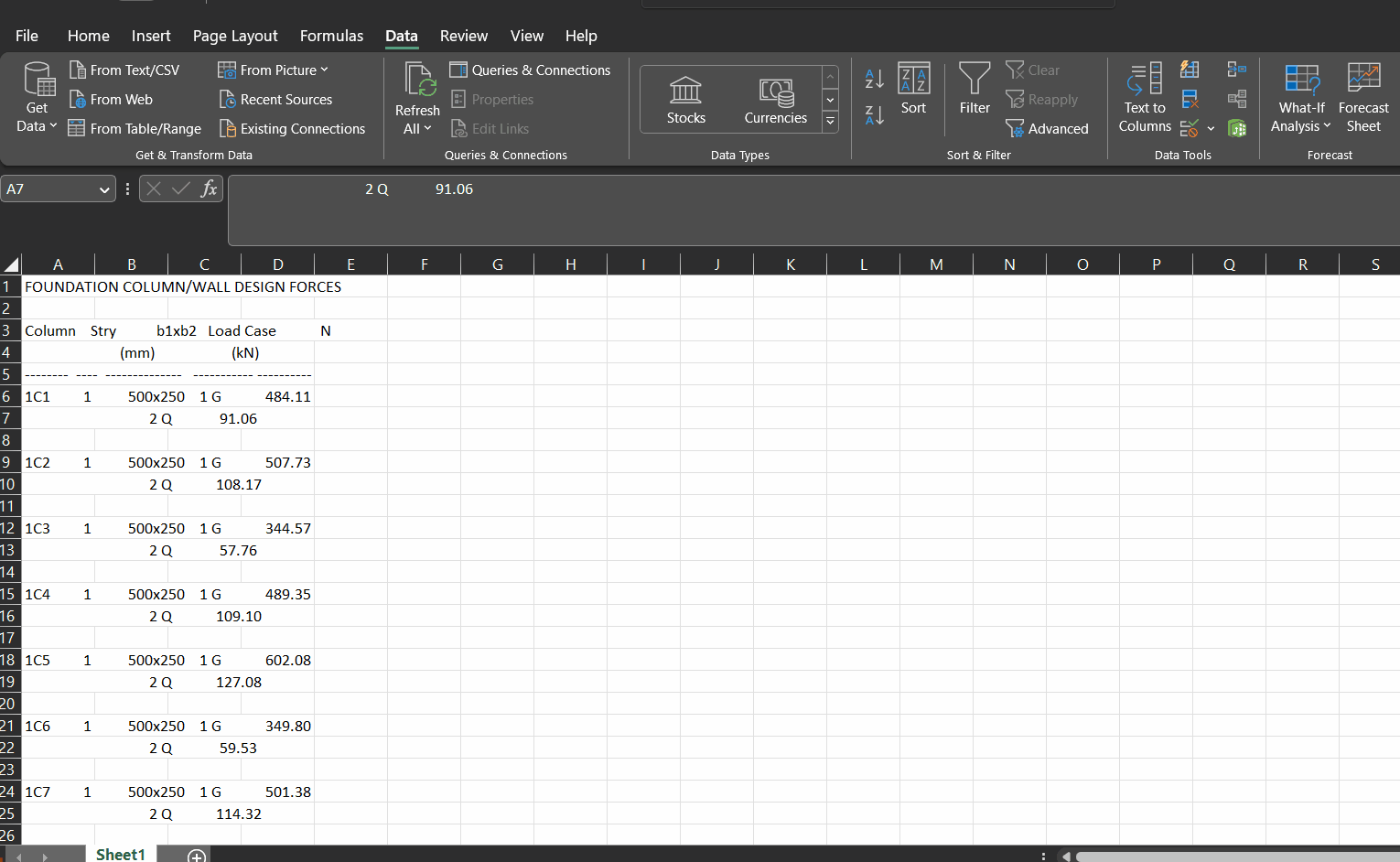

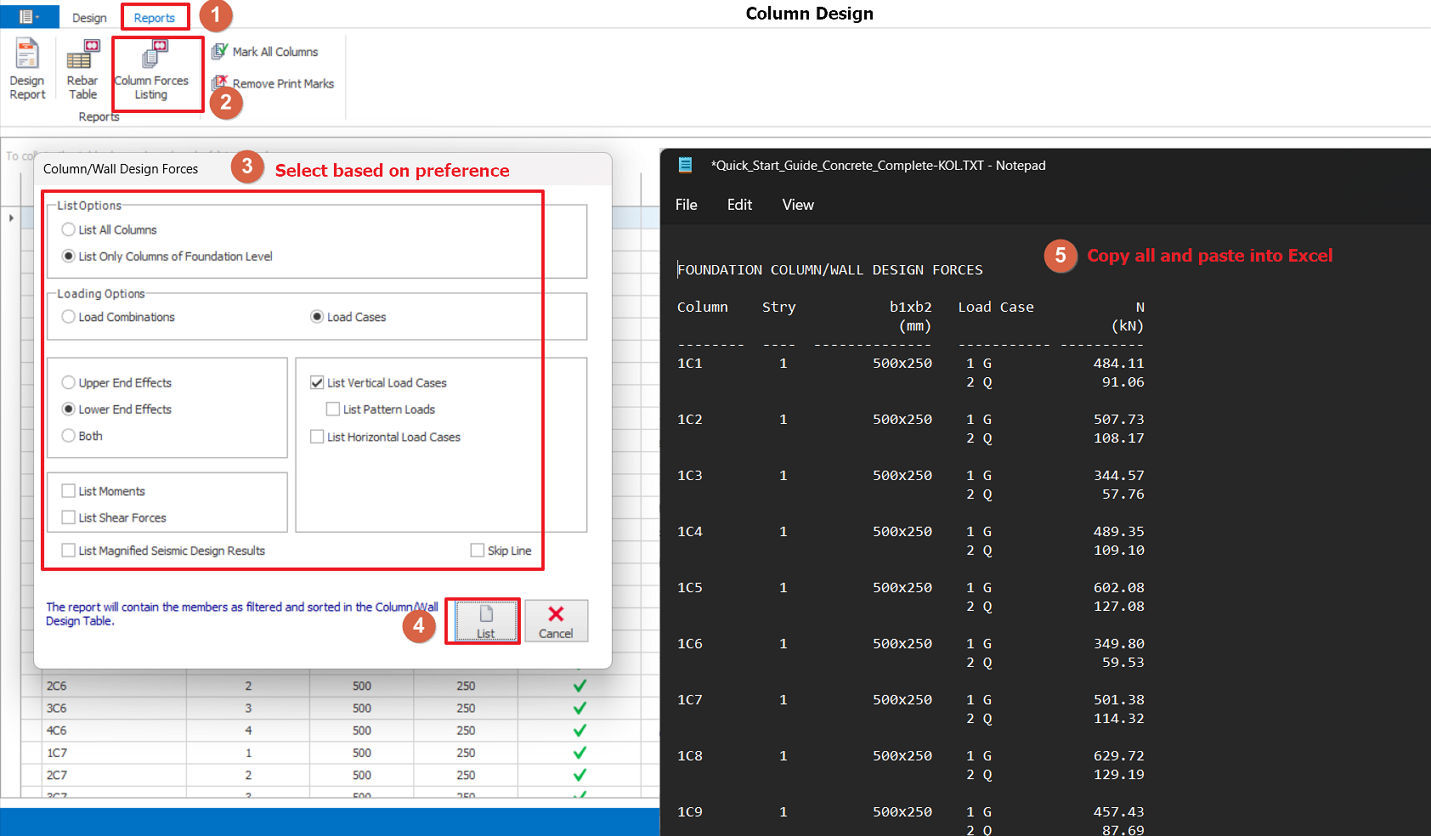

If you would like to generate the column/wall forces to excel format, please go to Design Tab > Columns > Reports > Columns forces listing, to generate the forces in notepad first. Then copy all the data into Excel and use the function "Text to Column" to split the text into multiple columns (refer to snapshot below). Attached GIF for your reference.
