How to use mesh reinforcement / BRC for slab design
To use mesh reinforcement / BRC for slab design, these are the steps :

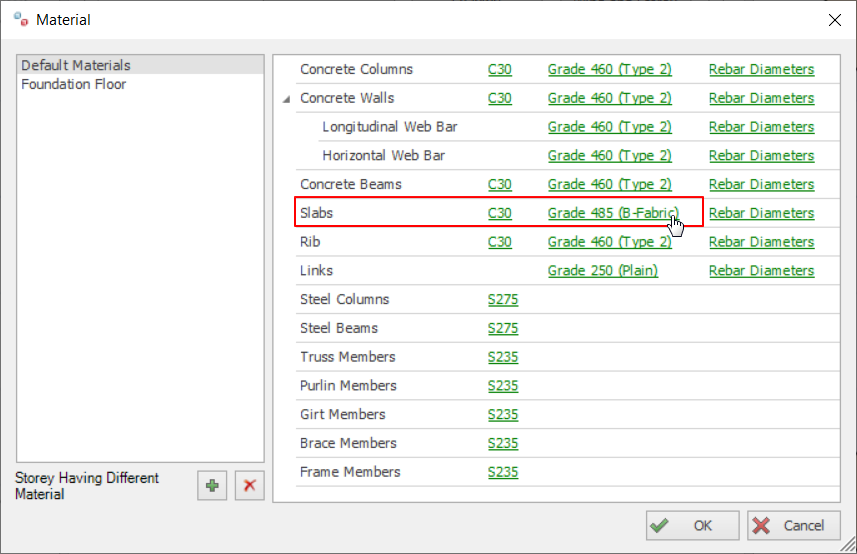

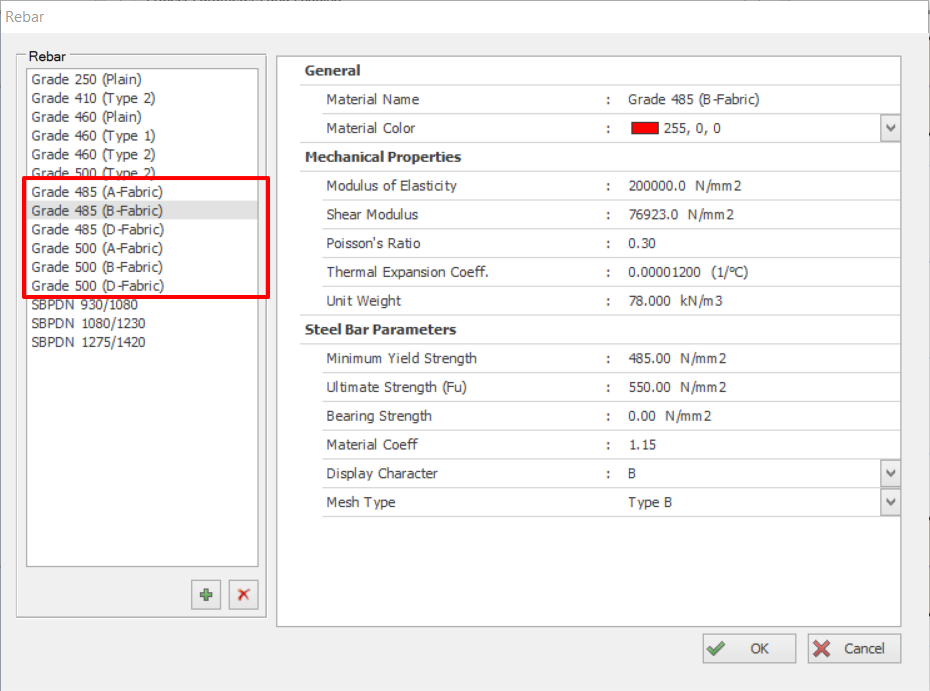

- In Building Analysis menu > Edit Materials > Slabs > Pick a Fabric Rebar

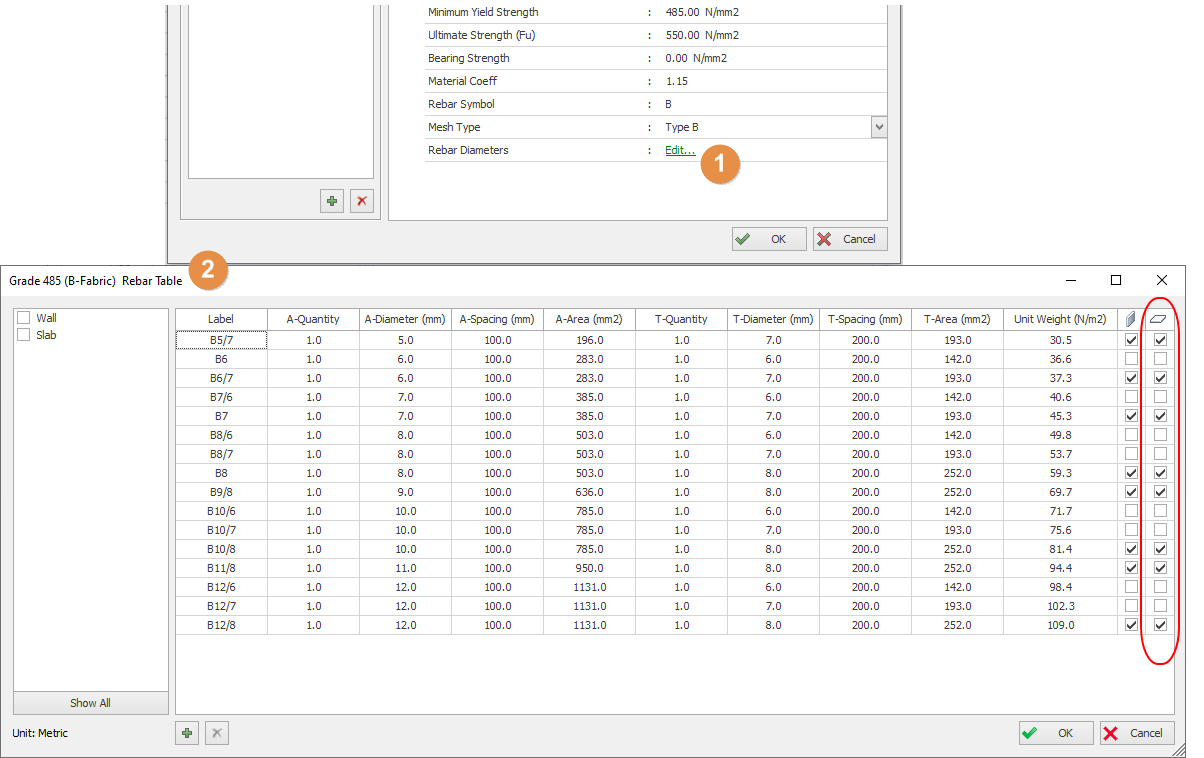

- Click Rebar Diameters and choose the diameter to be used in the design
- Click Slab Analysis and Design
> Slab Strip Design (Batch Mode)

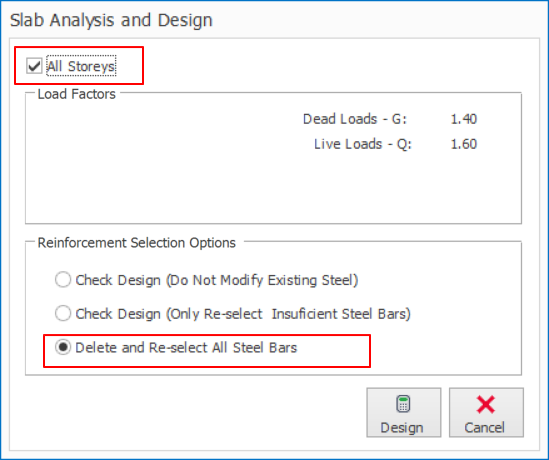

Perform a "Delete and Re-select All Bars” design.
Please note that slab strips must be created before running Slab Analysis and Design
