Multiple Stiffened Web Opening Macro

Multiple Stiffened Web Opening Macro

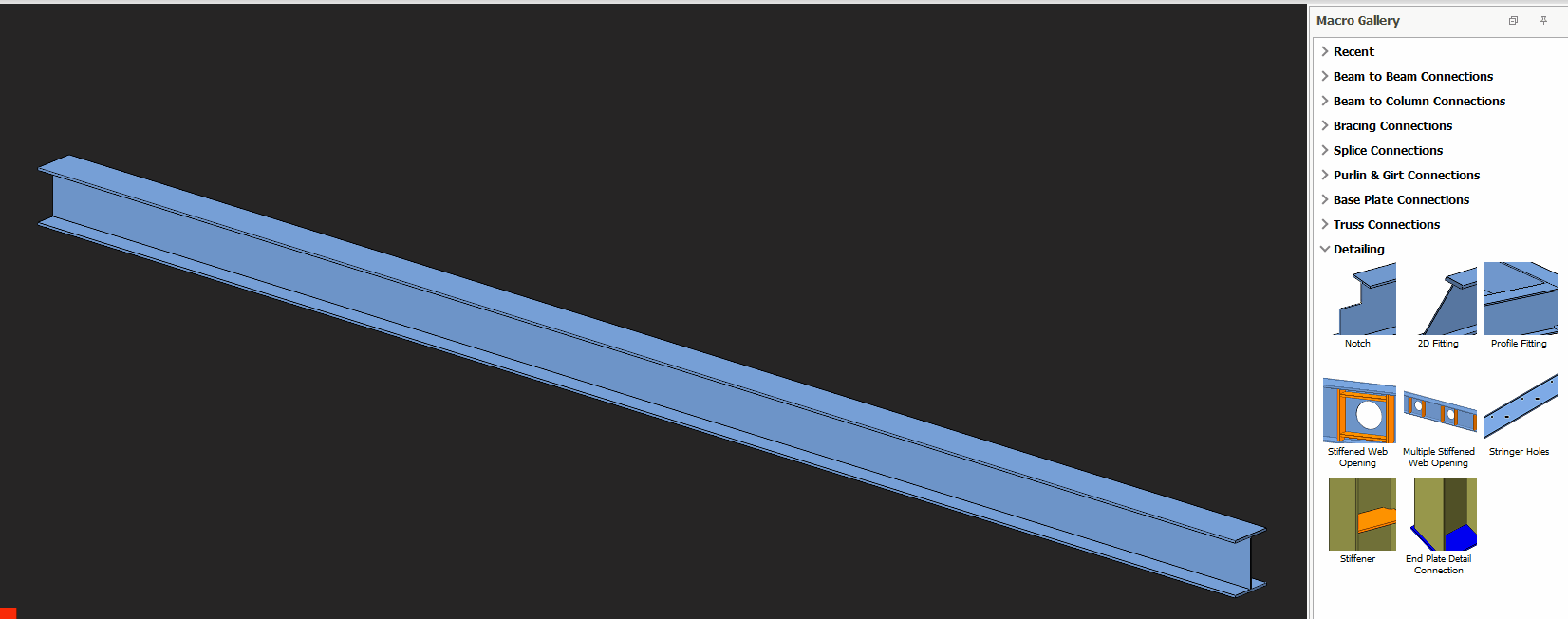

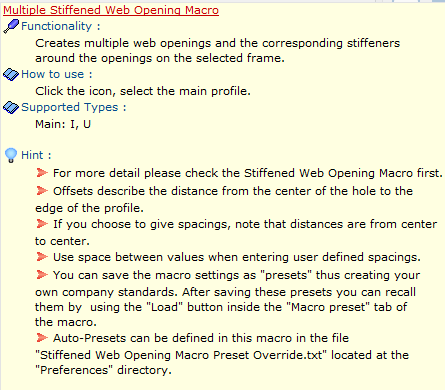

In ProtaSteel,  "Multiple Stiffened Web Opening Macro"  can be used for multiple opening on the web of a profile. Placing the mouse cursor over the   "Multiple Stiffened Web Opening Macro" under "Detailing" section in Macro Gallery will reveal the tooltip describing the scope and steps of this macro.


How to use it:
  1. Click Multiple Stiffened Web Opening  icon under Detailing Category.
  2. Select the profile.
  3. Right Click.
  4. The web openings will be automatically created.


There are 3 types for the hole types like  "Stiffened Web Opening Macro" .
  1. Circular Hole
  2. Rectangular Hole
  3. Hexagonal Hole

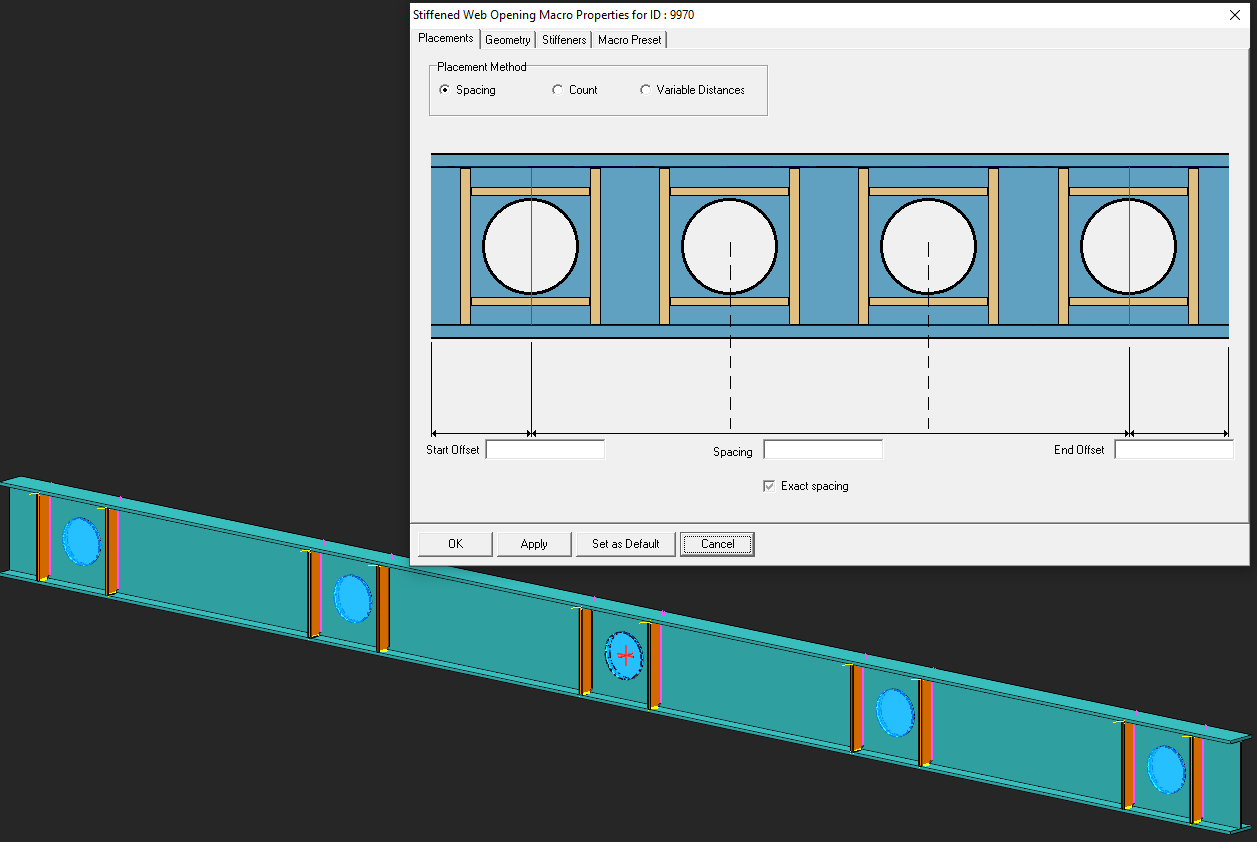

Placement methods can be changed from the "Placements" tab which has 3 methods.
  1. Spacing
  2. Count
  3. Variable Distances
Spacing, start and end offsets, opening counts are set in the Macro Properties.




This macro only applicable to U and I sections.
