Pile Detailing

Pile Design : Pile Detailing

To generate the pile details, please follow steps below:-
  1. Go to Design Library (top menu) > Pile Design

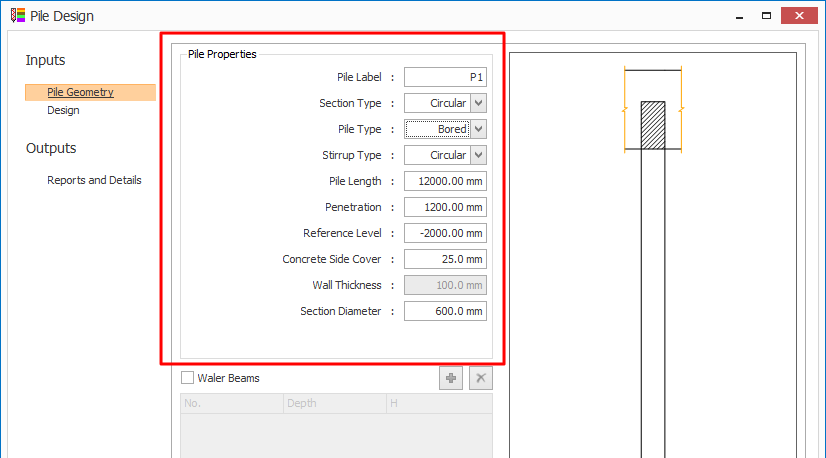

  2. In Pile Properties , input all the parameters such as section type , pile type, pile length, etc.

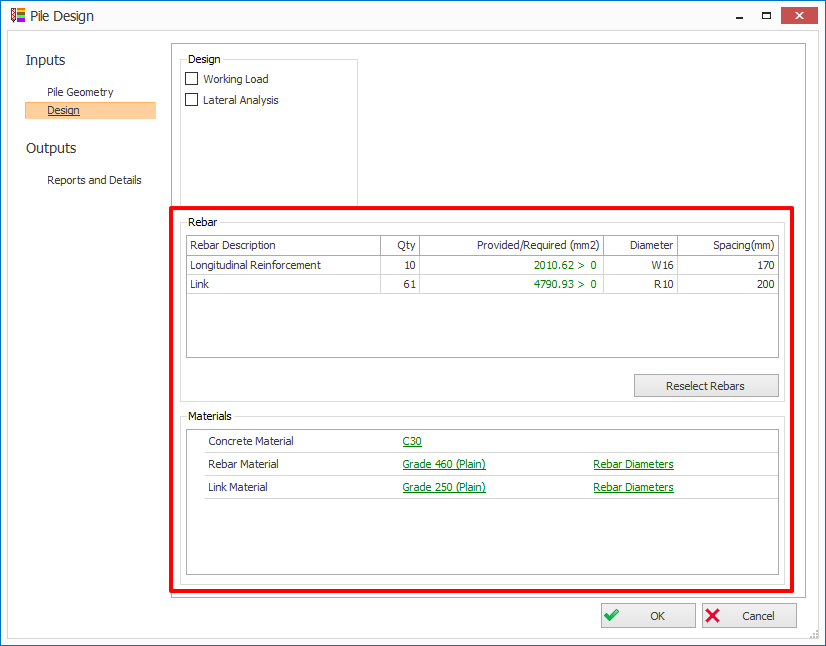

  1. In Design tab, select concrete grade, rebar and link grades & diameters.
  2. Click OK  > Pick and insertion point on the drawing to insert the Pile Details.
Notes
The defined material and rebars will be used for generation of Pile Details, calculations of pile allowable structural capacity and lateral analysis.
