Report Manager

Report Manager



Report Manager Button

The “Report Manager” is designed to collect and concatenate reports created using the individual modules.


The "Report Manager" is the central report manager where all analysis and design reports can be accessed and managed.  It can be found from the "File" pulldown menu. Alternatively, you can find it from the file toolbars above the structure tree.

Reports can be created from each of the modules. The main reports are formatted and consist of a header & footer and a main body containing text, graphics and/or tables. The report can be configured and printed, or it can saved for later printing via the “Report Manager”.
Alert
The report must be generated from each module first, and then it is only shown in the Report Manager.
In the top menu, there are 3 tabs, namely, Report Sets, Reports, and Header Settings tabs. The functions of the buttons in those tabs will be explained in the following subsections.

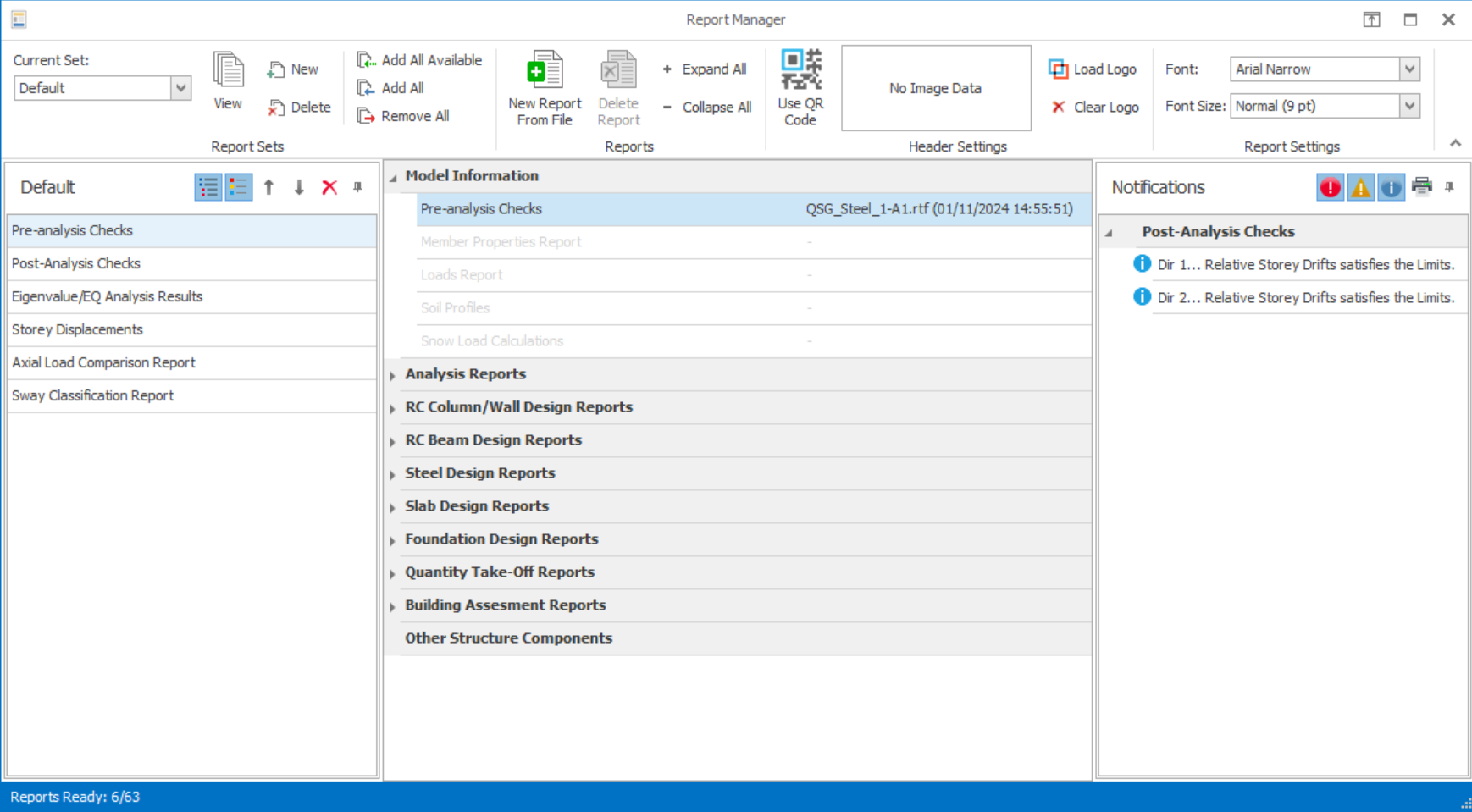

Report manager

Report Sets Tab

The report sets allows the user to create the combined reports.  The users can choose and add the available reports to the report sets

Current Set

This can be used to select and list the existing report sets. The contents of the selected report sets will be display on the left panel.

View

It combines all reports in the selected report set sequentially and views the report set. The generated report can be printed or exported to other formats.
Options also exist for exporting the report to different formats as below:
  1. PDF – Exports the document content to portable document format; and
  2. To Office – Exports the document content to MS Word 97-2003 (.doc) or MS Word 2007 (.docx) format
  3. To Image – Exports the document to one of the image formats
  4. To Web – Exports the document to “Hyper Text Markup Language (HTML)’ or Web Archive (MHT)’ format.

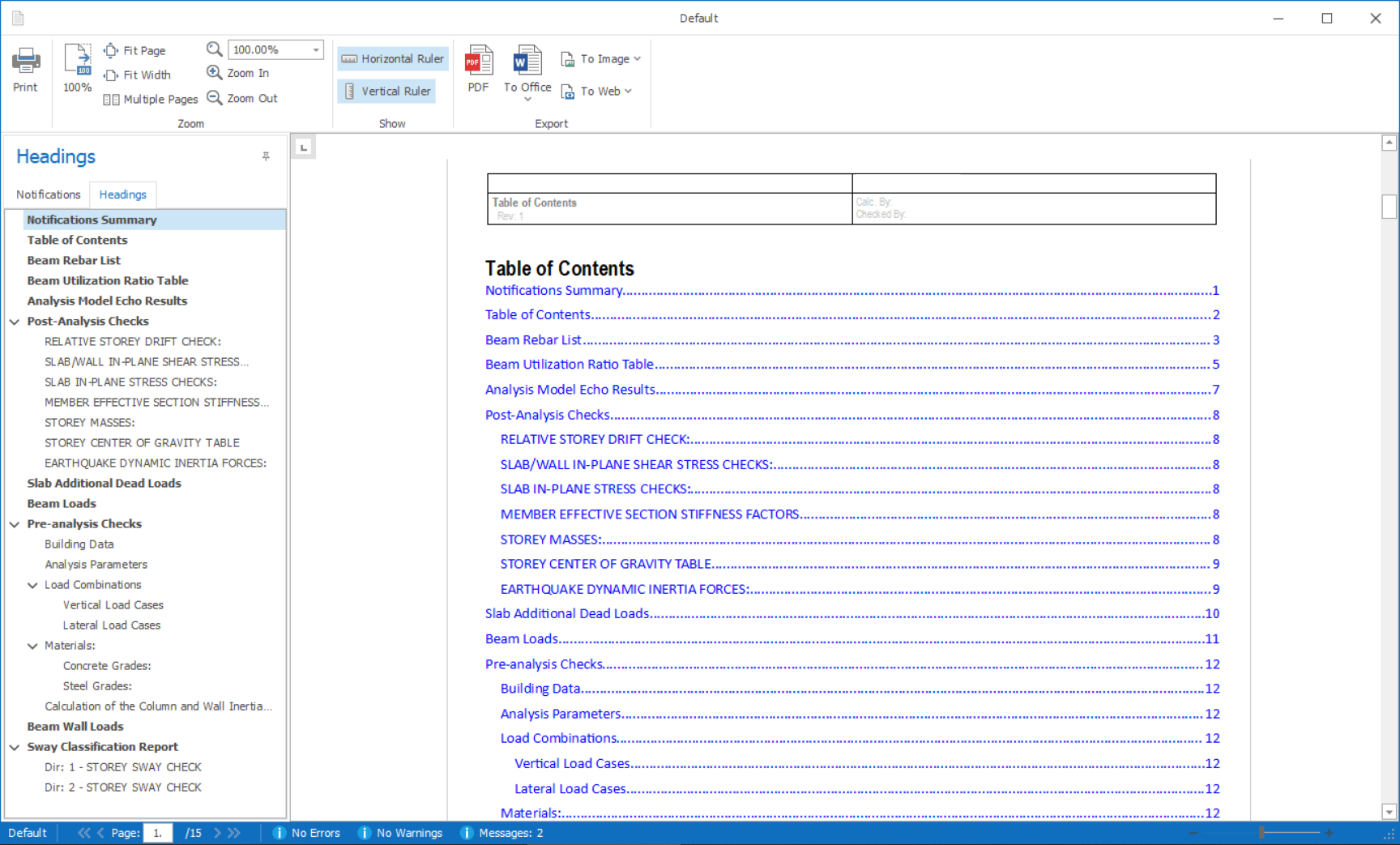

Combined report

New

It creates a new blank report set. After this button is clicked, the user has to assign a “Report Set Name” for the new report set.

Delete

It can be used to delete the current report set.

Add All Available

It adds all available reports in the repository to the selected report set.

Add All Reports

It adds all reports in the reports in the repository to the selected report set.

Reports Tab

New Report from File

It creates a new report from a Word Document (.docx) or Rich Text File (.rtf). The original file is converted to RTF and copied to the local project folder.

Delete Report

It can be used to delete the selected user-defined report report

Expand All

All category groups in the middle frame can be expanded by pressing this button.

Collapse All

All category groups in the middle frame can be collapsed by pressing this button.

Header settings Tab

Use QR Code

It generates a QR Code using the user licence information and automatically inserts it in the header. It can be used where authentications is required in project submission. RTF files of all reports are automatically regenerated for this setting to take effect.
It can be used to load a jpeg, png, bmp or gif file from the disk. Maximum file size is 1MB. The loaded picture is scaled and used as the company logo in the report header. RTF files of all reports are automatically regenerated for this setting to take effect.
It clears the loaded company logo. RTF files of all reports are automatically regenerated for this setting to take effect.

Font

Select the font type.

Font Size

Select font szie.

Report Set Contents (Left Panel)

The left hand pane contains a list of all the reports that are automatically produced and also reports that are included in the selected report set

Automatically Generates and Inserts a Table of Contents using Heading Style

If this button is activated by clicking, it will automatically generate and insert a table of contents using heading styles in the selected report set.

Automatically Creates a Summary of Notifications and Adds it to a Combined Report

If this button is activated by clicking, it will automatically create a summary of notifications and add to the combined report.

Move Up

It can be used to move the selected report up in the list.

Move Down

It can be used to move the selected report down in the list.

Delete Report

It can be used to delete the selected report from the current report set.

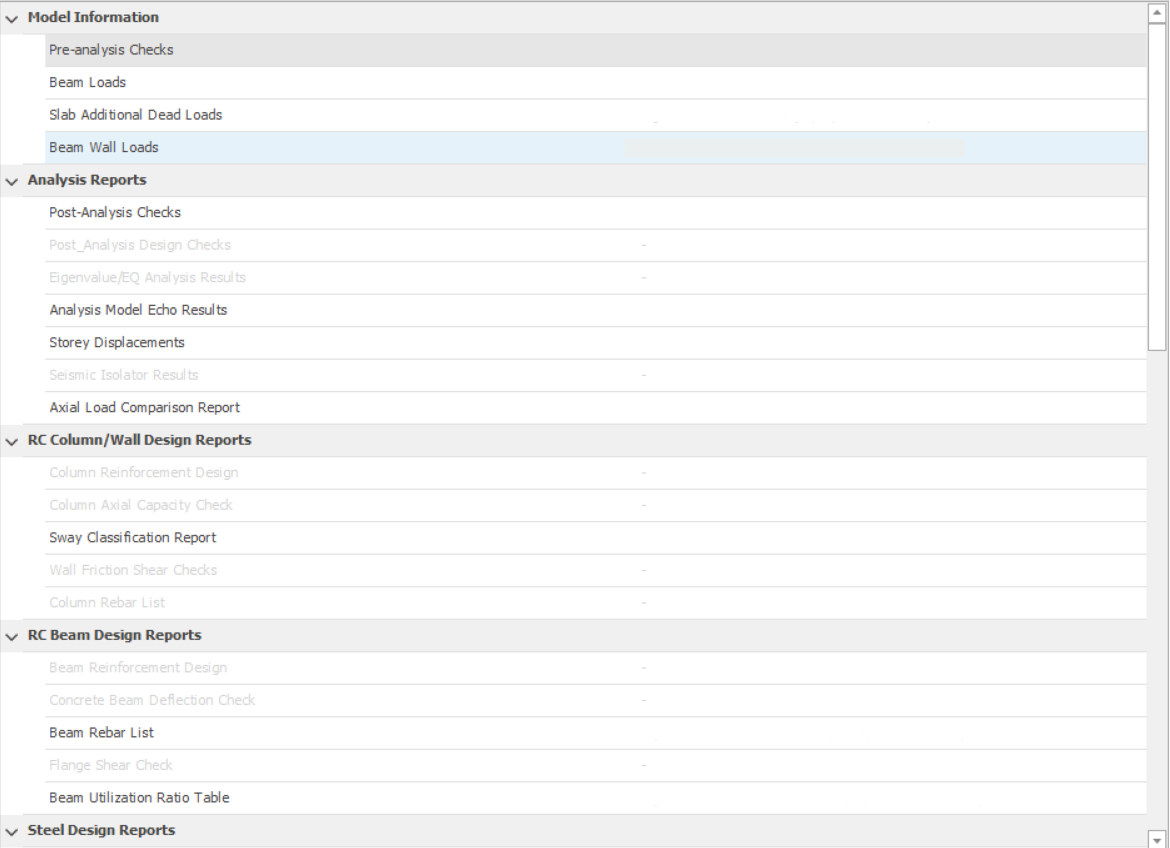

List of Reports (Middle Panel)

The middle panel contains a list of organized and grouped reports in the various folders. You can expand or collapse the main folders by clicking on topics.

Notifications (Right Panel)

The Right hand panel contains Notifications such as warnings and failure in any of the design checks.

Show/Hide Errors

Show or hide the errors in the notification list.

Show/Hide Warnings

Show or hide the warnings in the notification list.

Show/Hide Messages

Show or hide the messages in the notification list.
