Column Application Plans

General

Important information of columns such as reinforcement, dimensions, quantity table etc. can be included in Column Application Plans.

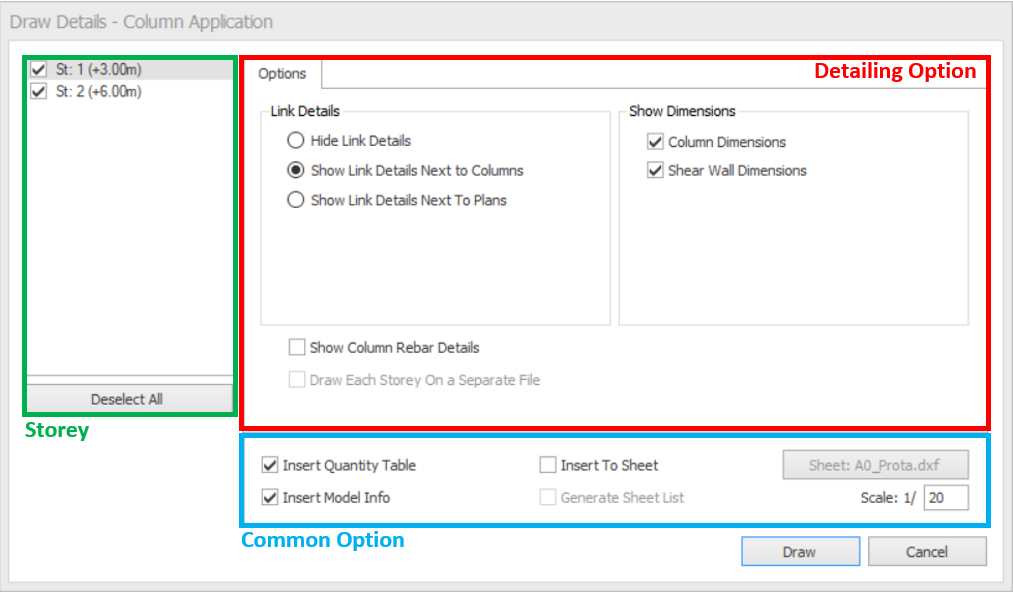

Dialog is composed of 3 parts:

1. Storeys : Select stories to be generated

2. Detailing Options : Select the preferred options for each type of detail by highlighting them.

3. Common Options : These setting can be found in all "Draw Details" dialogue. The common options allow to insert Sheet (Title block), quantity table, model info and adjust scale of drawing.


For the detailed explanation of common options, kindly refer to Detail Drawing Manager : Common Options.

Navigation

Go to the "Detail" panel which by default located at left hand side of the ProtaDetails > Right click "Column Application Plans"  > Select "Draw Column Application Plans"

Detailing Options - Column Application

Link Details

If user choose to :

1. Hide Link Details: The information of the shear links will not be displayed in the generated column application plan

2. Show Link Details Next to Columns: By checking this option, the details of the shear links will be displayed next to the columns.

3. Show Link Details Next to Plans: The details of the shear links will be displayed next to the plan form.


Show Dimensions

If user check the option of:

1. Column Dimensions: The dimension of the columns will be shown.

2. Shear Wall Dimensions: The dimension of the shear walls will be shown.


Show Column Rebar Details: The side elevation view of column reinforcements will be displayed at the right side of the plan.
