Draw Full Line Between Section Mark

Draw Full Line Between Section Mark

General

Section lines drawn in Form Plan layout and beam elevations can be shown in full line.

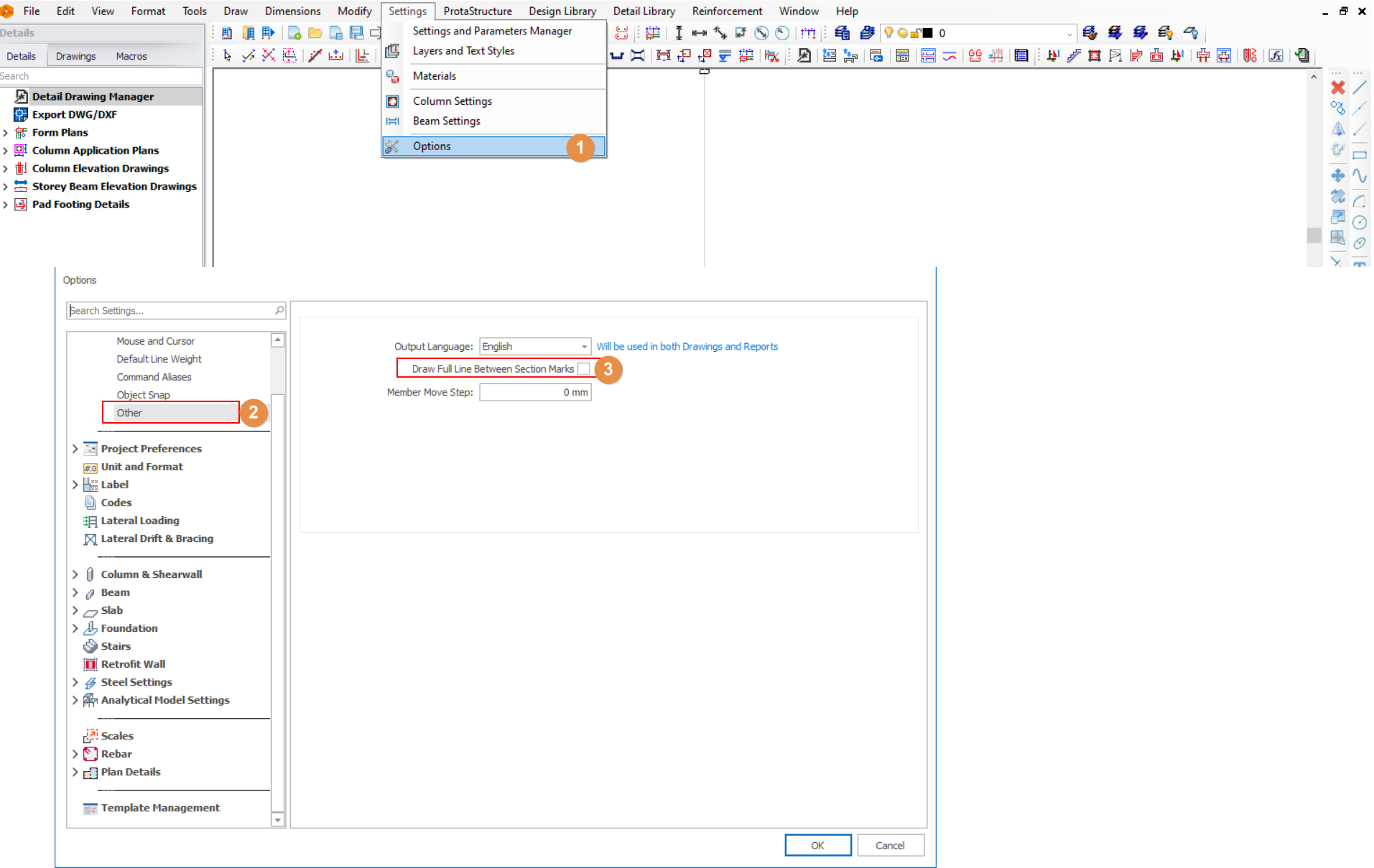

Navigation

  • "Settings" > "Options" > "Other"

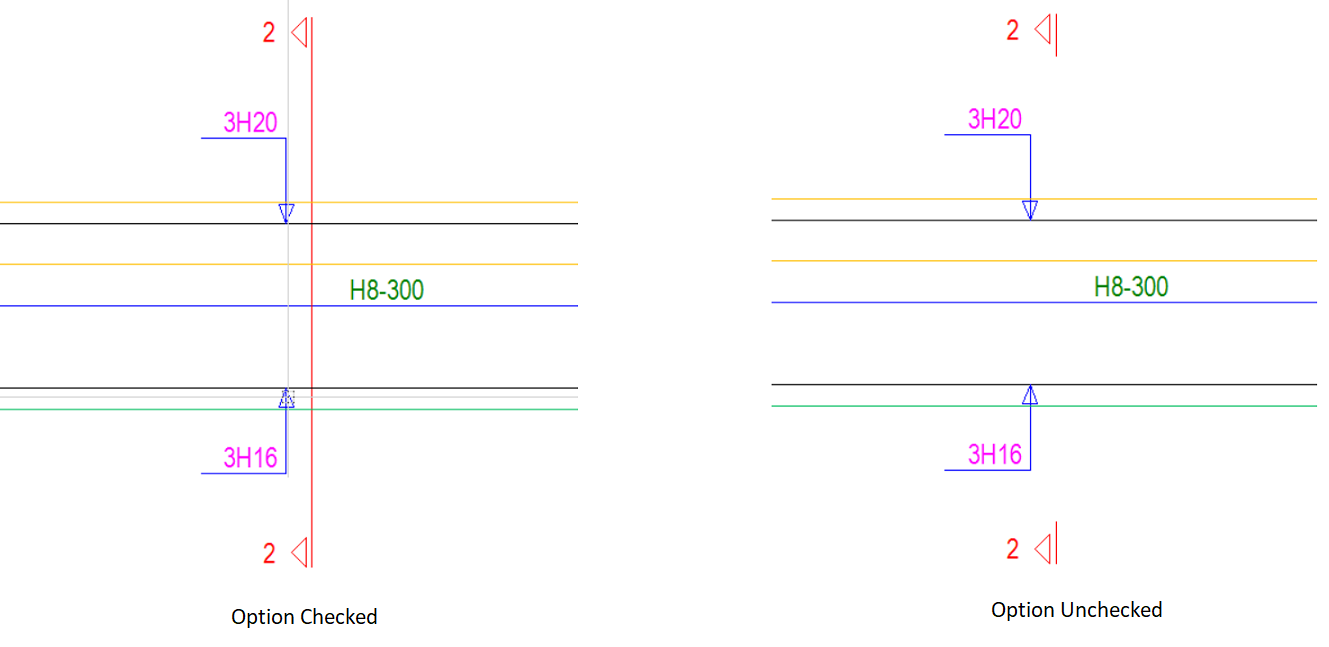

Below images show the effect of the option
