ProtaSteel : Import Titleblock for General Drawing

Import Titleblock for General Drawing

User can simply import company standard titleblock as DXF in "Drawing Module" by going to "BIM" top menu > Import DXF
(Make sure that the titleblock is not in block.)

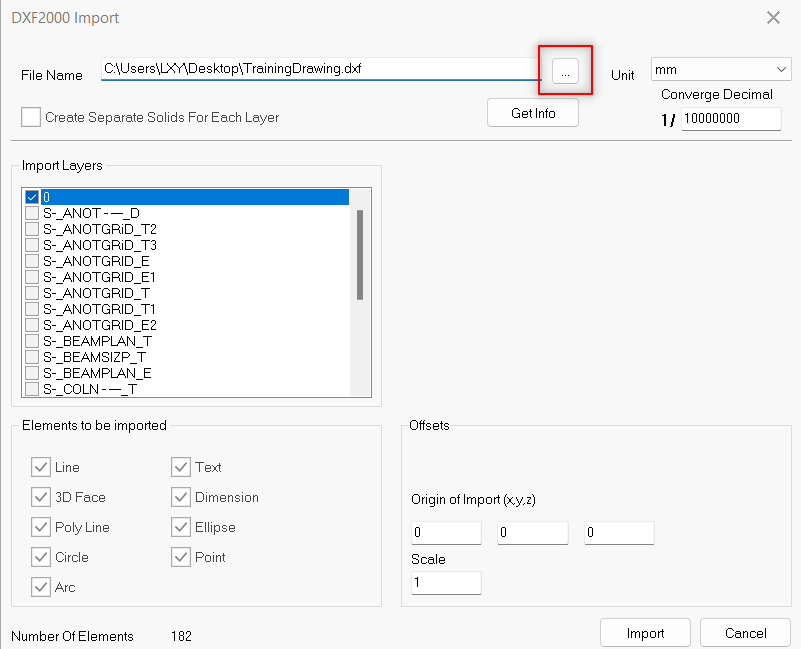

  1. Select the company standard titleblock DXF directory.


  2. Titleblock annotation can be insert/modify using "Text" Function. For more detail on "Text" function please refer to our article : Points, Construction Objects and Text >> Text
Please also see our demonstration video starting at 18:50 below.
(Although the video is in Turkish but you may on the "CC" for English subtitle for your understanding.)

If this video is not working properly, please visit link: https://youtu.be/2wywEcfcerA?t=1130
