Handrail Connection Macro Example

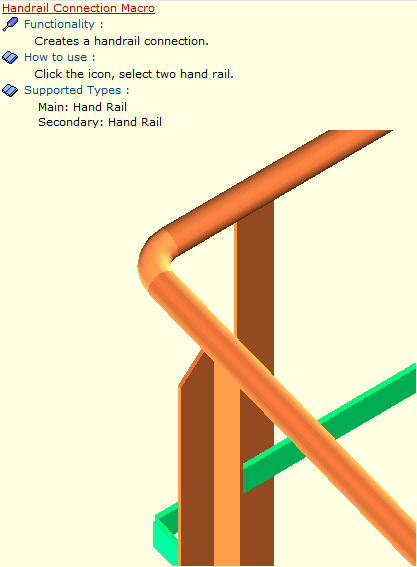

Placing the mouse cursor over the Handrail Connection Macro will reveal the tooltip describing the scope and steps of this macro.
How To Use It:
- Click the First handrail.
- Click the Second handrail.
- The connection will be automatically generated.
- Create the most appropriate View first before creating the connection. The same view & orientation will be used to produce the drawings. Click this topic for more details: Creating Views
- Press F9 on the joint to set the point of interest. The view will then rotate about the point of interest
