How to remove bar mark in the rebar label

The number stated beside the rebar label is denoting the quantity of the rebars.

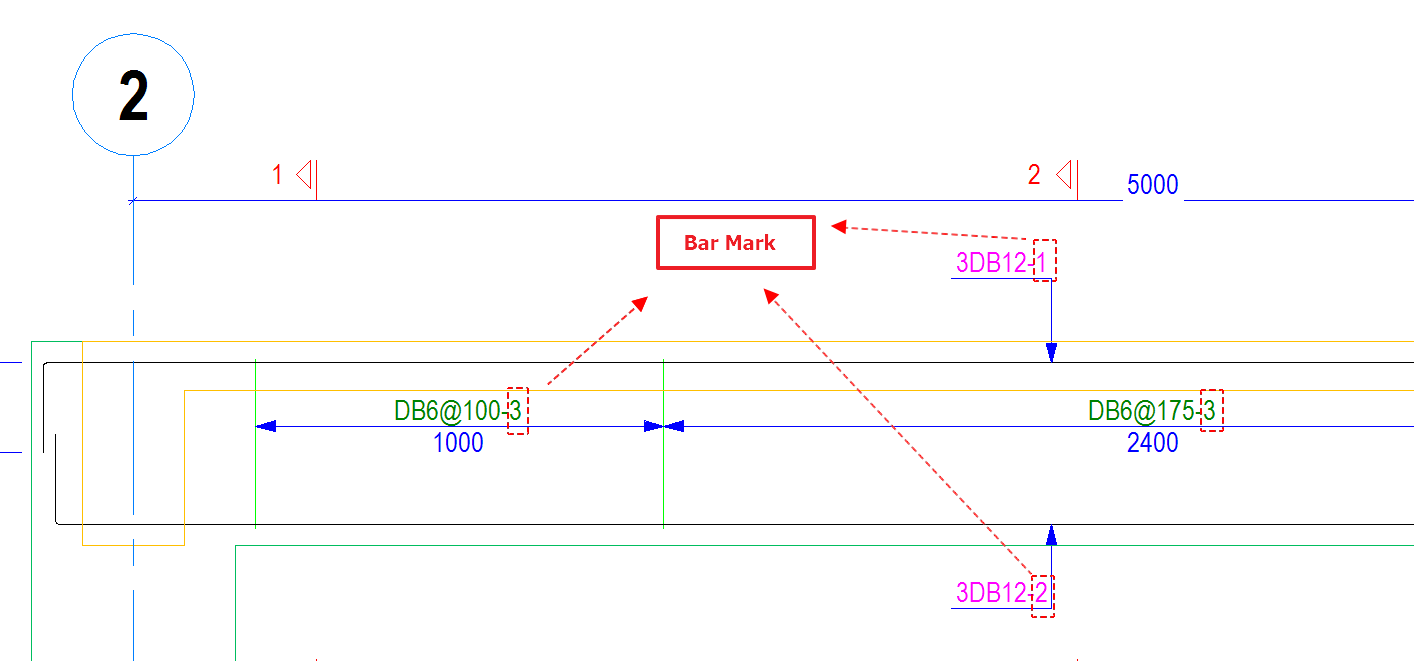

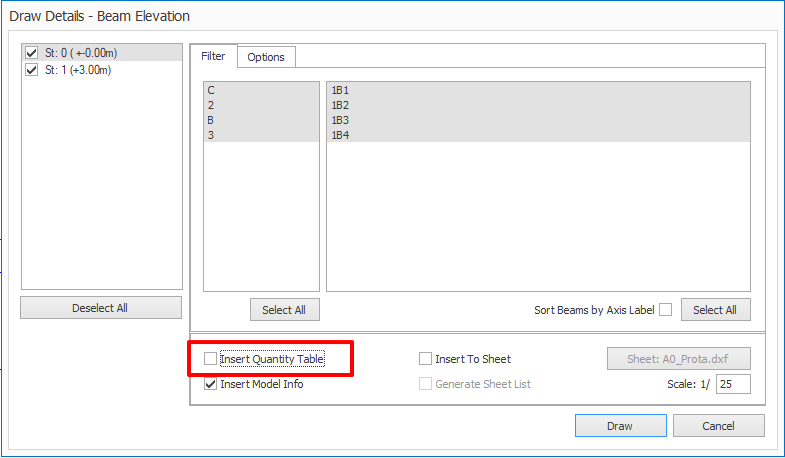

The bar mark will be displayed on the rebar label in detail drawings when "Insert Quantity Table" option is checked. To remove it, just simply uncheck this option.
